DJI Zenmuse H30, 4K Ultra HD, 3840 x 2160 piksler, 1920 x 1080,3840 x 2160 piksler, 1920x1080@15fps, 1920x1080@25fps, 1920x1080@30fps, 1920x1080@5fps, 3840x2160@30fps, 1080p, 2160p, 30 fps

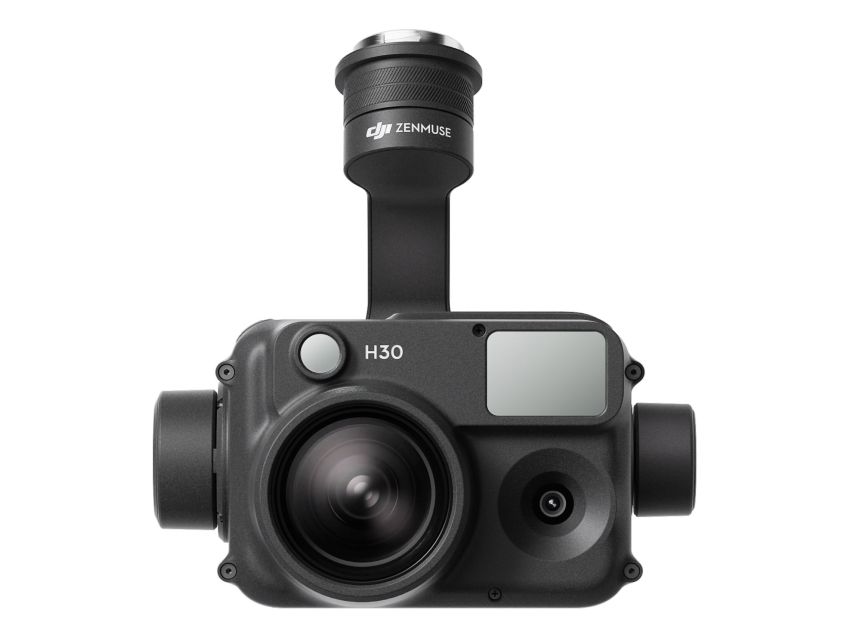

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

Supports Black and White Night Vision
and NIR Illumination
In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. ^[5] It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for night safety observation and search-and-rescue operations.

1280×1024 Infrared Resolution
The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, ^[6] with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ^[7] ensuring the infrared images remain clear.

High-Res Mode
for Precise Observation
Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, ^[8] which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

Visual and IR Cameras
Simultaneous Zoom
The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)
With the installation of an infrared density filter, ^[9] the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. ^[10] This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.

IP54
Ingress Protection
With an IP54 dust and water resistance rating, ^[12] the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.

-20° to 50° C (-4° to 122° F)
Operating Temperature
The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting all-weather operational needs.

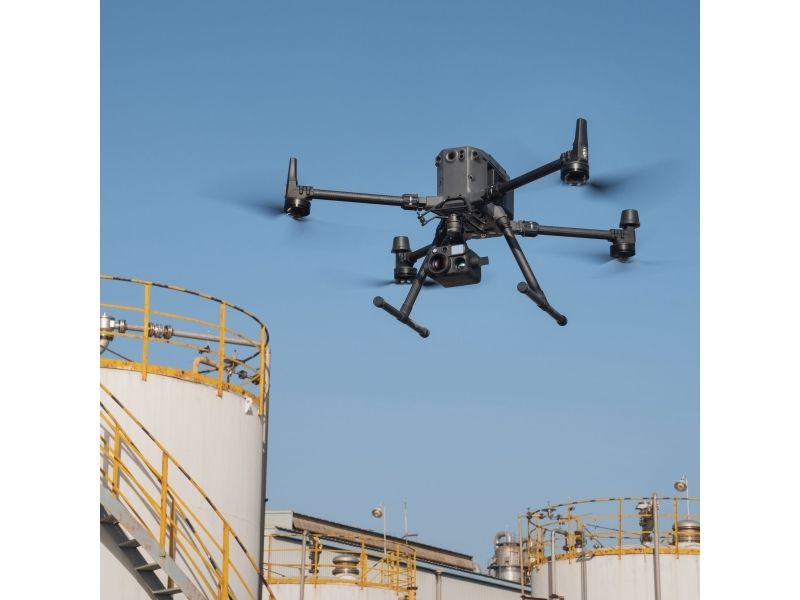

Application Scenarios
With DJI Enterprise flight platforms, the Zenmuse H30 Series is suited for applications in a range of industries, such as public safety, electricity, oil and gas, water conservation, and forestry.
