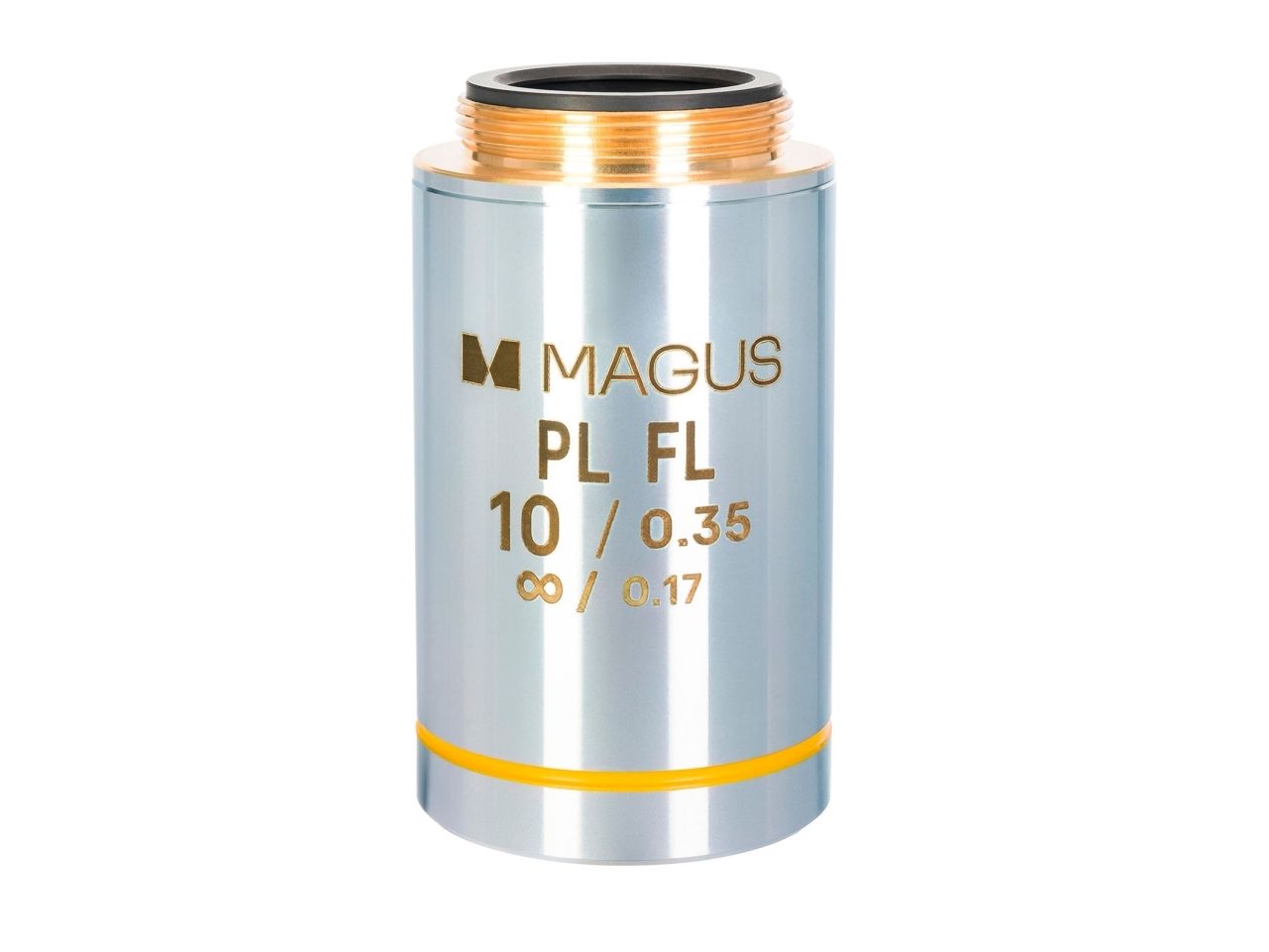

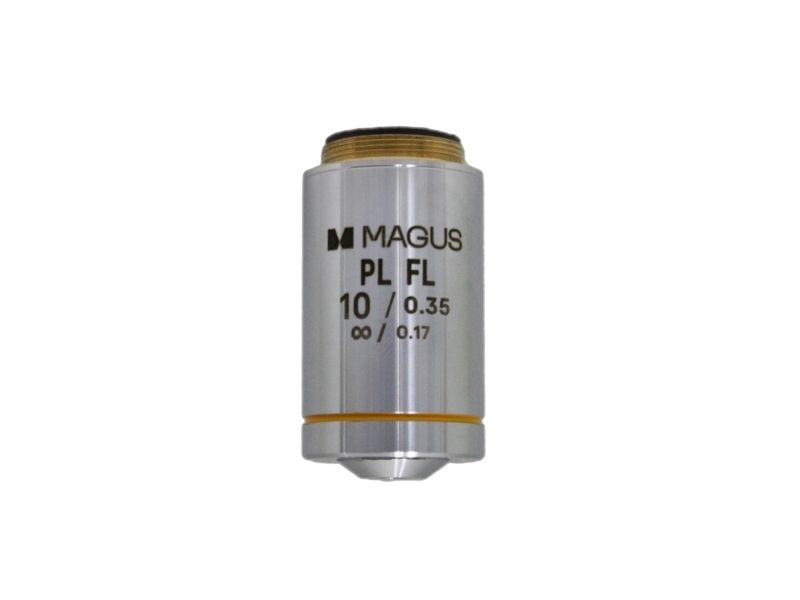

MAGUS 10PLFL 10х/0,35 Plan FL ∞/0,17 Mål

The 10PLFL objective is designed for observations in fluorescent light. Special optics do not produce their own fluorescent light or exhibit birefringence. The objective, with its high NA, produces a high-resolution image: observations or capturing images with a digital camera are more detailed, clear, and expressive than with a standard objective.

The wide, flat field of the objective produces a large image field and works well with wide-field eyepieces or a digital camera. For example, with a 10x eyepiece and a 22mm field of view, the total field of view of the system will be 2.2mm. In order to work with the objective in fluorescent light, we recommend using the CLM90 7.1MP, 1.1'' digital camera.

The 10PLFL objective provides 10x magnification. When mounted on a microscope, the total usable magnification of the system will be in the range of 175x to 350x. To achieve these parameters, use the appropriate eyepieces. Lower magnification eyepieces are not recommended for the system, as they will not allow you to examine the object in detail. Excessive eyepiece magnification will not provide new information about a sample. The 10PLFL objective has a resolution limit of 0.78µm.

The model is designed for installation in an infinity-corrected tube. The parfocal distance is 45mm. Cover the sample with a 0.17mm thick cover glass.

Compatibility:

• MAGUS Lum 400 Fluorescence Microscope


• MAGUS Lum 400L Fluorescence Microscope
