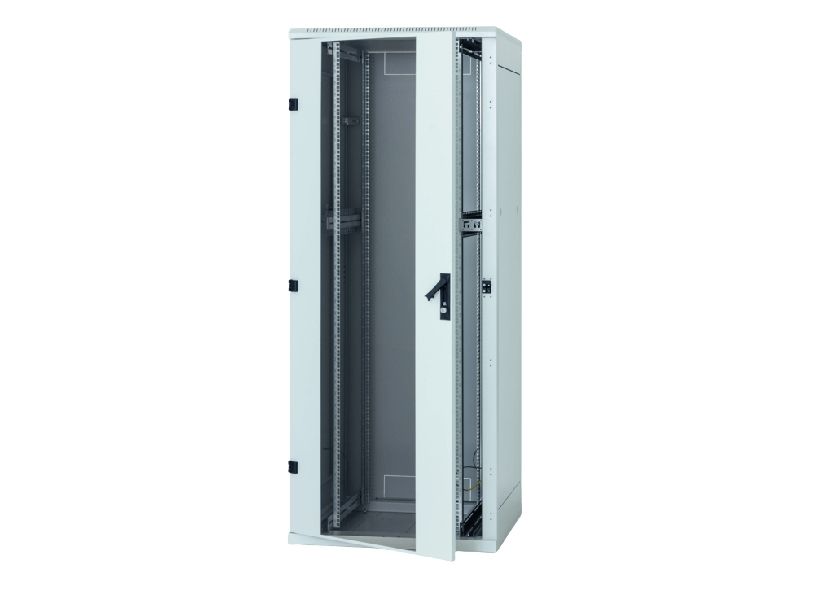

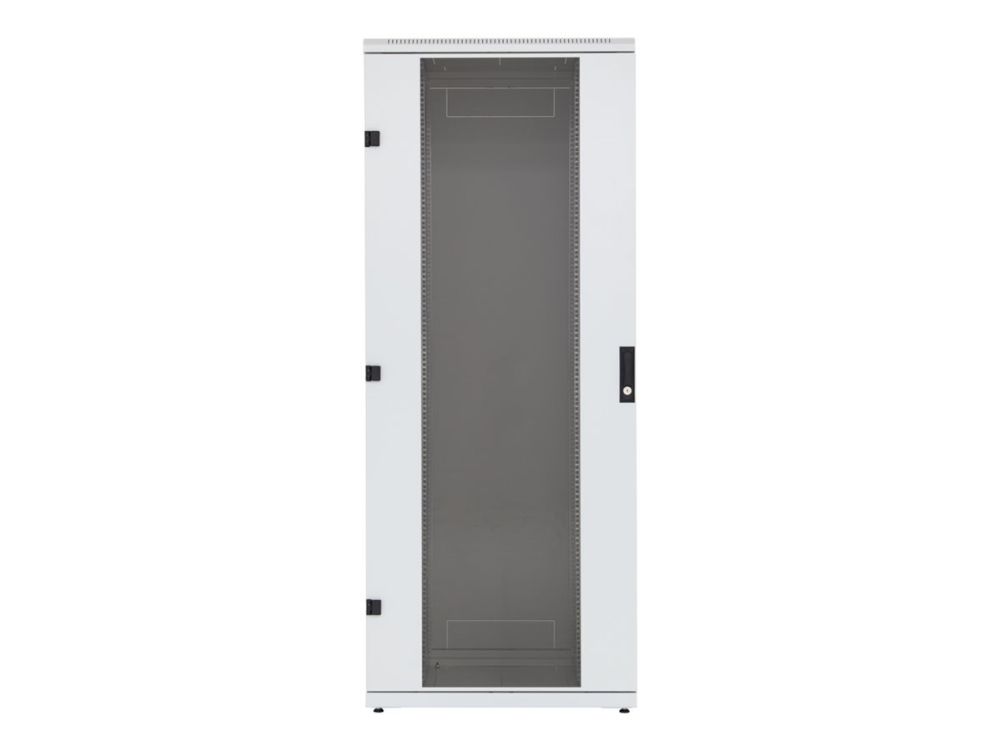

Triton RMA N - Rack skap - fritt stående - lysegrå, RAL 7035 - 42U - 19"

Delta S the perfect cabinet for the highest demands, is a robust steel free-standing cabinet for data and telecommunication installations. A high quality of workmanship ensures an excellent appearance. It is particularly suited to heavy load carrying capacities due to its high strength.

Sliding rails are fixed rigidly to the shell of the cabinet, set up at 19“, on the centre line of the cabinet. On cabinets in width 800mm are also prepared for the possibilities of setting up 21“ on centre, 19“ off centre to the right and 19“ off centre to the left.All the positions are specified by holes for fixing the sliding rails with Tap-tite screws.

- Hinged front door with lockable swing handle typically with glass but may be solid steel or perforated as required. The 180° hinge design permits easy removal of the door or when needed a change of direction of door opening.
- Removable side and rear covers secured with key operated locks.
- Cable entry points in the top, bottom and upper and lower rear sections of the cabinet. Each entry point is covered by a breakout style blanking panel. Square area of cable enrty opening is now bigger (333cm2).
- Two pairs of vertical 19" fixing rails which can be adjusted infinitely back and forth in the depth of the cabinet are attached to each side. In 800mm square versions the frame may also be adjusted across the width of the cabinet.
- Openings are provided in the base and top of the cabinet for fan units. Top fan opening is covered by a 3D cover.
- A brush strip to restrict ingress of dust through the chosen cable entry opening.
- Adjustable mounting and levelling feet.
- Vented top and bottom sections for natural convective ventilation.
- Earthing system
- Supply with elementary mounting material.

- Safety hardened glass 4 mm thick
- Steel sheet
