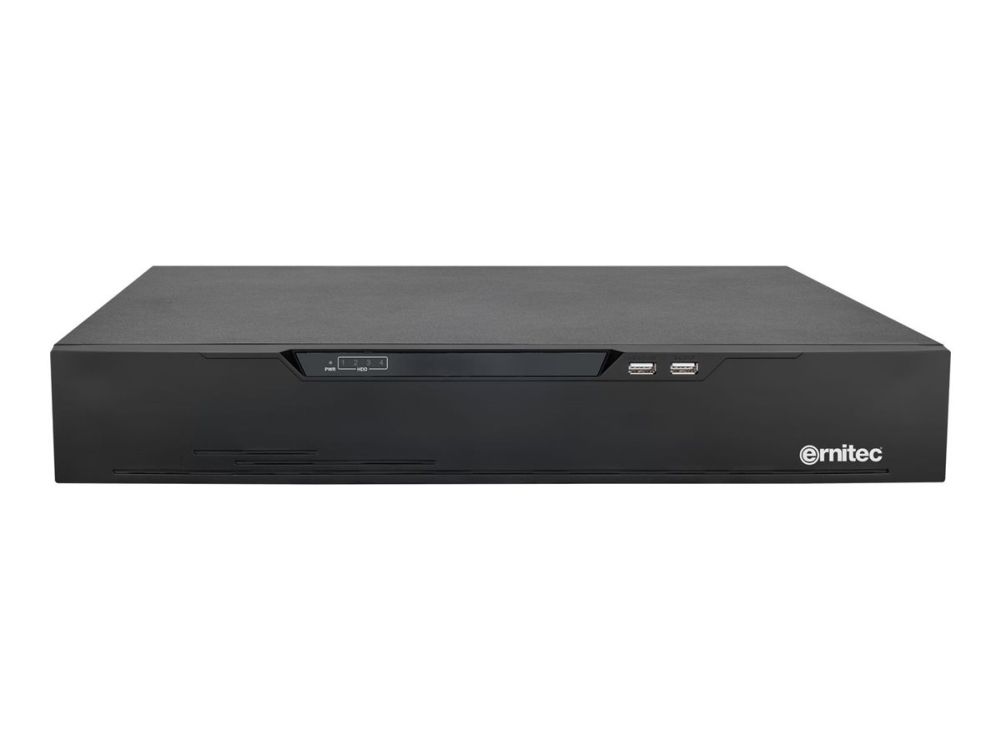

Ernitec Cygnus - NVR - 32 kanaler - med nettverk - 1.5U

The system allows access to up to 32-ch IP cameras and has a decoding capacity of 1-ch@12MP or 32-ch@D1. It supports face and multi-objective recognition, two HDMI and one VGA interfaces, and four SATA hard disks, each with a capacity of up to 16TB. There are two RJ45 10M/100M/1000M network interfaces, Plug & Play with 16 PoE interfaces, and support for RAID 0/5/6/10. It features smart search and playback capabilities.

For video input, it accommodates 32-channel IP camera input with an incoming and outgoing bandwidth of 320Mbps. Video output includes HDMI 1 output with resolutions up to 3840×2160 and HDMI 2 and VGA outputs up to 1920×1080. It supports different source output and has a decoding capacity ranging from 1ch 12MP to 32ch D1. Dual stream is supported, as well as multi-screen display configurations.

AI recognition features include face comparison, displaying real-time captured faces and comparison results, and multi-objective recognition that captures and displays images of vehicles, human bodies, non-motor vehicles, license plates, and face comparison results. Smart search functions allow searching by time, properties, pictures, and license plate, with trigger events including buzzer, alarm push, email, and simultaneous comparison results.

Perimeter protection supports alarm triggering by specified target types such as human and vehicle. Recording resolutions range from 8MP to D1, with manual, scheduled, and event-triggered recording modes. Motion detection, video loss, alarm in, and IVS can trigger events.

Playback and backup include synchronous playback and search modes by time/date, alarm, picture grid, and event, with backup modes via USB device, network, or eSATA. Network functions cover a wide range of protocols and support for up to 8 remote users.
