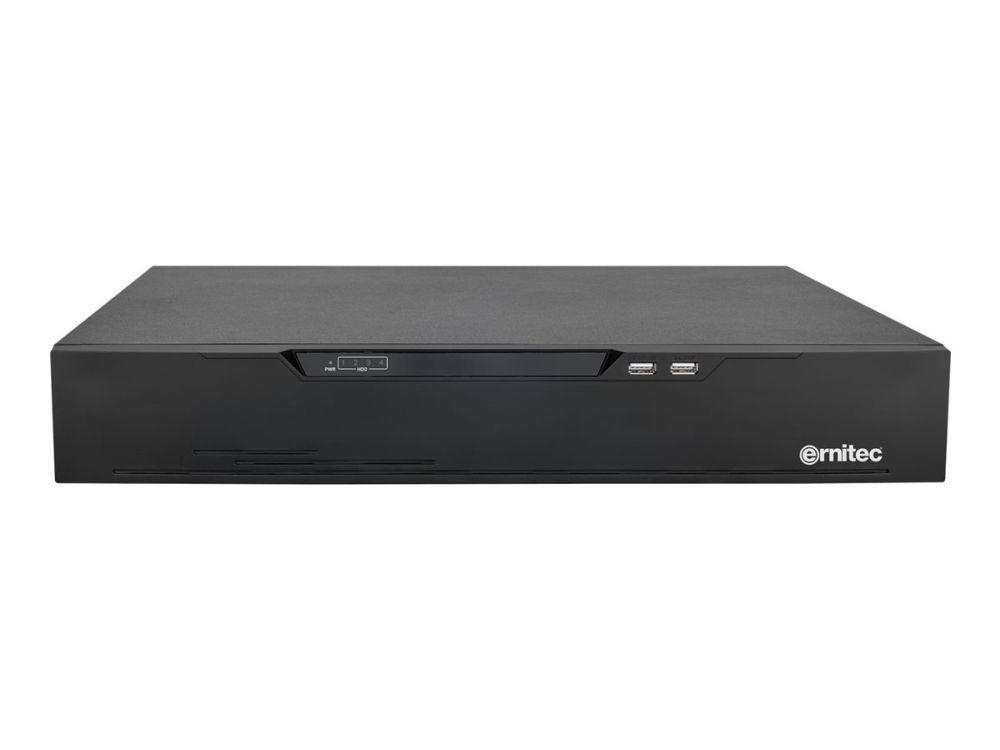

Ernitec Cygnus - NVR - 32 kanaler - med nettverk - 1.5U

Up to 32ch IP cameras access

• Up to 8MP resolution for live view and recording

• Support face recognition and multi-objective recognition

• Intelligent analysis by NVR: Intrusion (support the accurate

detection of vehicle and human)

• 4 SATA hard disk, up to 16TB for each HDD

• 2 RJ45 10/100/1000Mbps network interface

• Smart search & playback

• Support cloud upgrade

Video Input:

IP Camera Input - 32 Channel

Incoming Bandwidth - 320Mbps

Outgoing Bandwidth - 320Mbps

Video Output:

HDMI 1 Output - 3840×2160, 1920×1080, 1280×1024, 1024×768

HDMI 2 Output - 1920×1080, 1280×1024, 1024×768

VGA Output - 1920×1080, 1280×1024, 1024×768

Different Source Output - Support

Decoding Capacity - 1ch 12MP, 4ch 4MP, 9ch 1080P, 16ch D1, 32ch D1

Dual Stream

Support - Multi-screen Display

1st Screen: 1/4/8/9/16/32/36

2nd Screen: 1/4/8/9/16

AI Recognition

Face Comparison

Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity)

Multi-objective

Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity)

Smart Search

Time, Properties, Pictures, License plate

Trigger Events:

Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc.

Perimeter Protection

Intrusion

support alarm triggering by specified target types (human and vehicle)

Recoding:

Resolution - 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.

Recording Mode - Manual, Schedule (Regular, Continuous), Event

Trigger Events - Motion Detection, Video Loss, Alarm in, IVS

Playback and Backup:

Sync Playback

16/9/4/1

Search Mode:

Time /Date, Alarm, Picture grid, Event

Backup Mode

USB Device, Network, eSATA

Network:

Network Function - HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE

Remote Users - 8 users

Smart Phone - iPhone, iPad, Android

Interoperability - ONVIF, SDK, CGI

Network Interface - 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Disk Array - Array Type

RAID 5, RAID 6, RAID 10

HDD - 4 SATA Ports, up to 16TB capacity for each disk

eSATA - 1 eSATA Interface

Interface - Audio In/Out 1/1

Alarm In/Out - 16/4

USB Interface - Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0

RS485 Interface - Support

RS232 Interface - Support

General:

Power Supply - AC100 ~ 240V

Power Consumption - lt/ 15 W (without HDD)

Operating Conditions - -10 °C ~ 50 °C (14 °F ~ 122 °F)

Storage Conditions - Less than 90% RH

Certifications - CE/FCC

Dimensions - 440 × 368.3 × 70 mm (17.32 × 14.5 × 2.76 inch)

Net Weight - 4.65 kg (10.25 lb) without HDD.
