Fischer 564390, Endeklemme, Aluminium, 10 stykker, 3 cm
Varenr.: [20581997] | Producent: Fischer | Model-nr.: 564390 | EAN: 4048962460902
Fjernlager
Varen er på fjernlager, leveringstiden er 6-8 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Bring – Leveres på hentested nær deg
Gratis frakt
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
NOK
1.146,00
eksklusiv MVA 916,80
Totalt inkl. frakt
1.146,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail

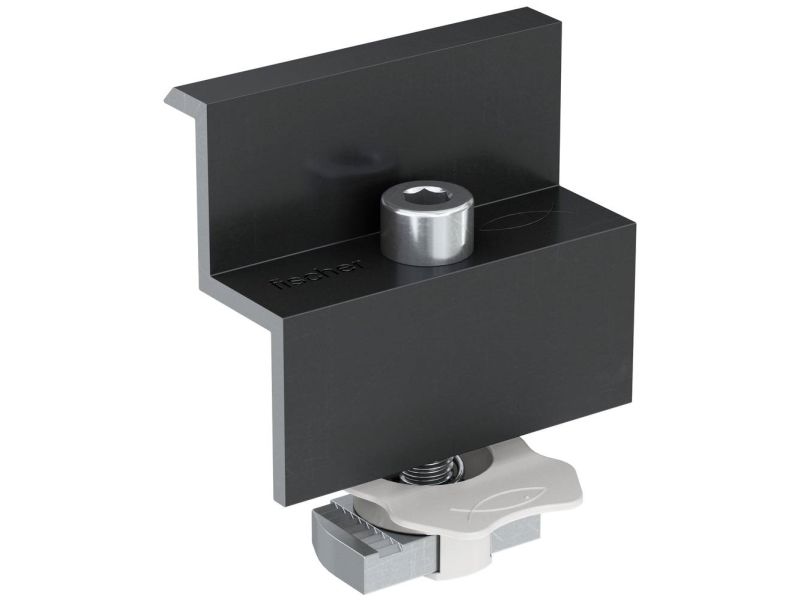

The pre-assembled end clamp for PV modules with aluminium frame
Advantages
- Thanks to the spring, the PM pre-assembled clamps remain raised during the tightening phases and thanks to the plastic element, they stay in position without sliding in the rail.
- The pre-assembled PM F clamps do not require any additional elements like screws, gaskets or bolts.

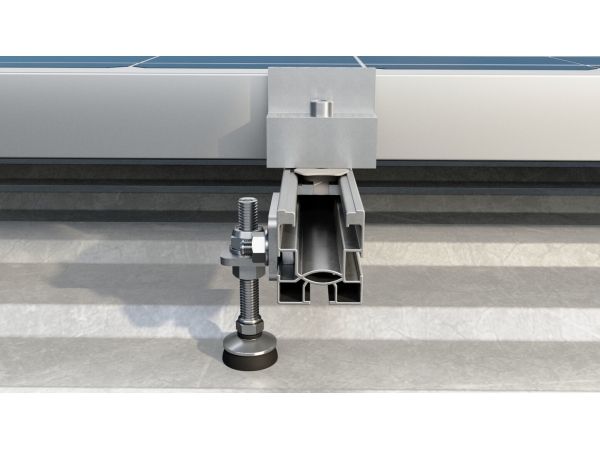

PM F is the pre-assembled clamp for PV panels with aluminium frame. Available in the PM F end clamp or PM C central clamp variants. The PM clamp is available in different variants depending on the thickness of the PV panel. PM F features a hammer nut with a special plastic cage to facilitate positioning of the nut inside the central groove of the rail. The spring keeps the clamp raised until it is tightened to facilitate positioning of the PV panel.
Properties
- PM C and PM F clamps in AW 6060 T66 aluminium alloy in accordance with EN 755-2:2013.
- A2.70 stainless steel Allen screw in accordance with EN ISO 3506-1 /2:2009.
- FCN AL Hammer head nut in AW 6060 T66 aluminium alloy in accordance with EN 755-2:2013 and grey nylon PA6.
Functionality
- Insert the lower part of the PM pre-assembled clamps into the upper groove of the rail.
- Turn the PM pre-assembled clamps 90° clockwise.
- Lock the PV module by applying a tightening torque of about 10 Nm to the Allen screw (TCEI).
Advantages
- Thanks to the spring, the PM pre-assembled clamps remain raised during the tightening phases and thanks to the plastic element, they stay in position without sliding in the rail.
- The pre-assembled PM F clamps do not require any additional elements like screws, gaskets or bolts.
PM F is the pre-assembled clamp for PV panels with aluminium frame. Available in the PM F end clamp or PM C central clamp variants. The PM clamp is available in different variants depending on the thickness of the PV panel. PM F features a hammer nut with a special plastic cage to facilitate positioning of the nut inside the central groove of the rail. The spring keeps the clamp raised until it is tightened to facilitate positioning of the PV panel.
Properties
- PM C and PM F clamps in AW 6060 T66 aluminium alloy in accordance with EN 755-2:2013.
- A2.70 stainless steel Allen screw in accordance with EN ISO 3506-1 /2:2009.
- FCN AL Hammer head nut in AW 6060 T66 aluminium alloy in accordance with EN 755-2:2013 and grey nylon PA6.
Functionality
- Insert the lower part of the PM pre-assembled clamps into the upper groove of the rail.
- Turn the PM pre-assembled clamps 90° clockwise.
- Lock the PV module by applying a tightening torque of about 10 Nm to the Allen screw (TCEI).
