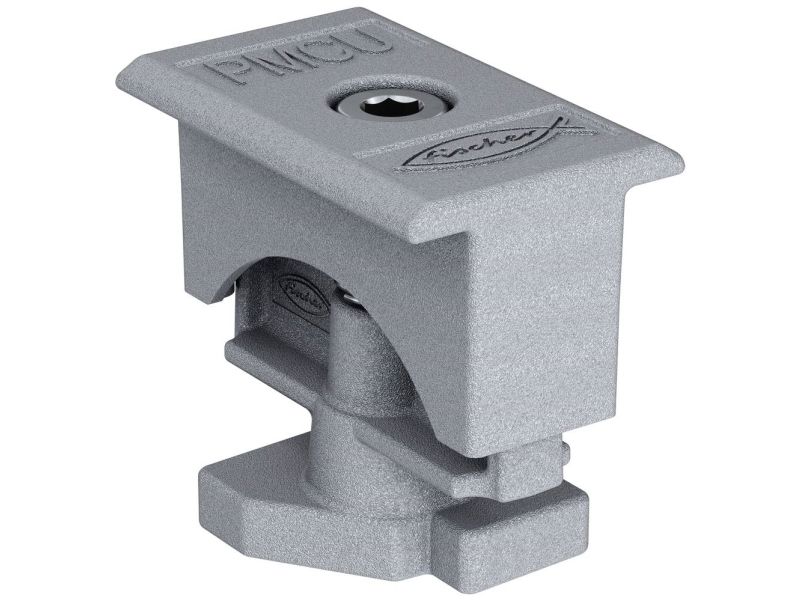

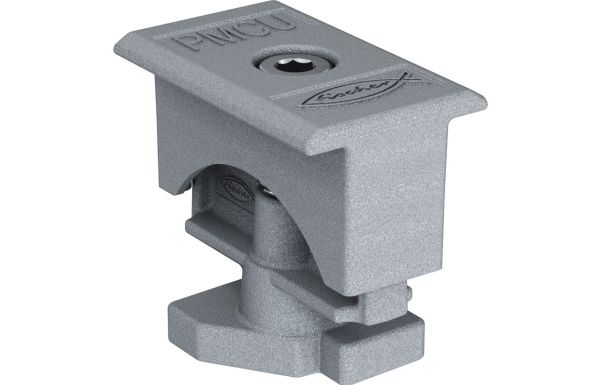

Universal central clamp for all PV modules with a thickness of 30 to 50 mm
Advantages
- The pre-assembled PMC U universal central clamp can fix all PV modules with a thickness from 30 to 50 mm.
- The recessed screw in the clamp avoids shadows on adjacent modules.
- Thanks to the smart nut, the PM U universal clamp can be quickly hooked and locked at any point on the support rail.
- Due to the spring, the clamp remains raised during the tightening phases and the plastic element makes it stay in position and not slide in the rail.
- The PMC U clamp does not require additional elements like screws, gaskets or bolts.

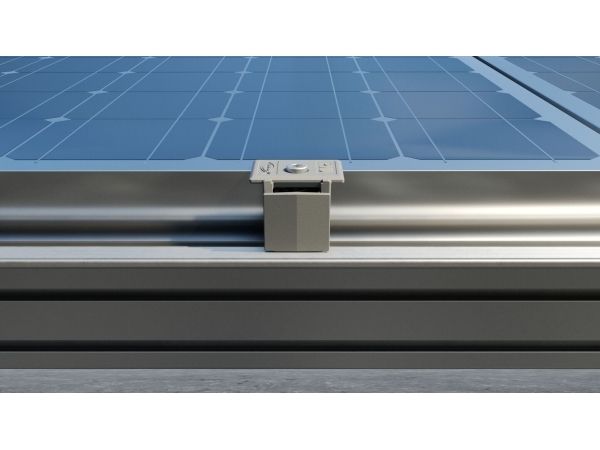

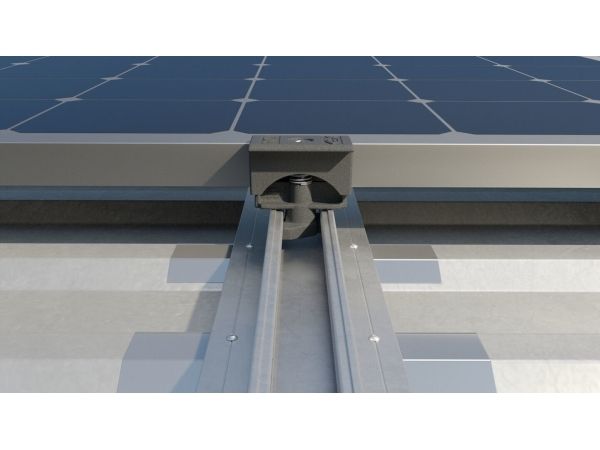

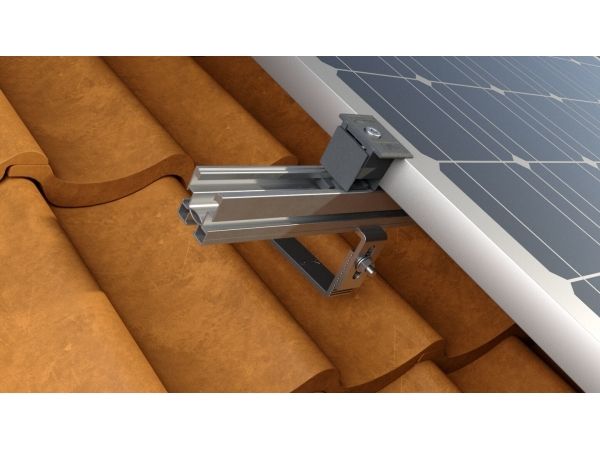

PMC U is the universal central clamp for PV panels from 30 to 50 mm in thickness, to be used as central clamp. PMC U fits quickly inside the rails by simply rotating it. Compatible with SolarLight, SolarFish, SolarMid, SolarFlat and SolarMetal rails.
Properties
- Clamp in EN AB 46100 aluminium alloy in accordance with EN 755-2:2013.
- A2-70 stainless steel Allen screw in accordance with EN ISO 3506-1/2:2009.
Functionality
- Insert the lower part of the PMC U pre-assembled universal clamp into the upper groove of the rail.
- Turn the PMC U pre-assembled universal clamp clockwise to use it as a central clamp.
- Lock the PV module by applying a tightening torque of 10 Nm to the Allen screw (TCEI) of 10 Nm.
