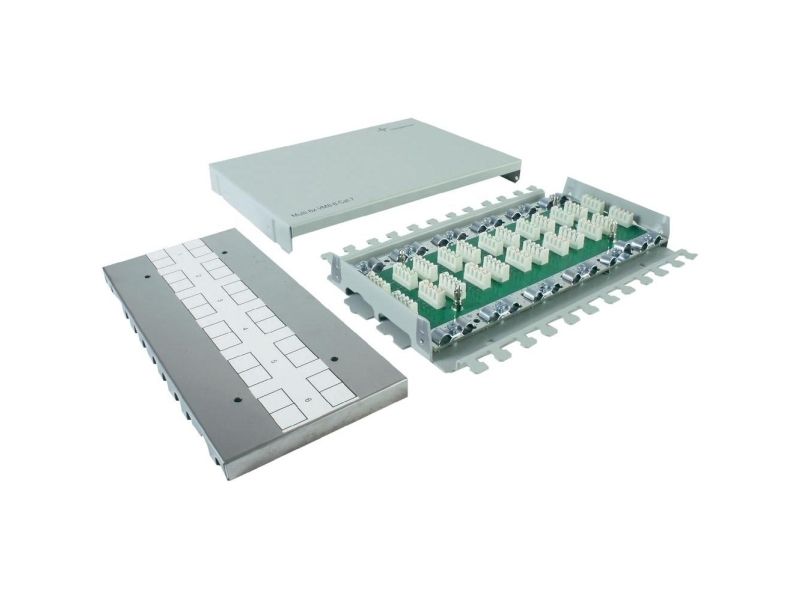

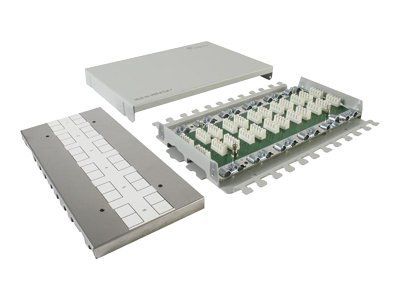

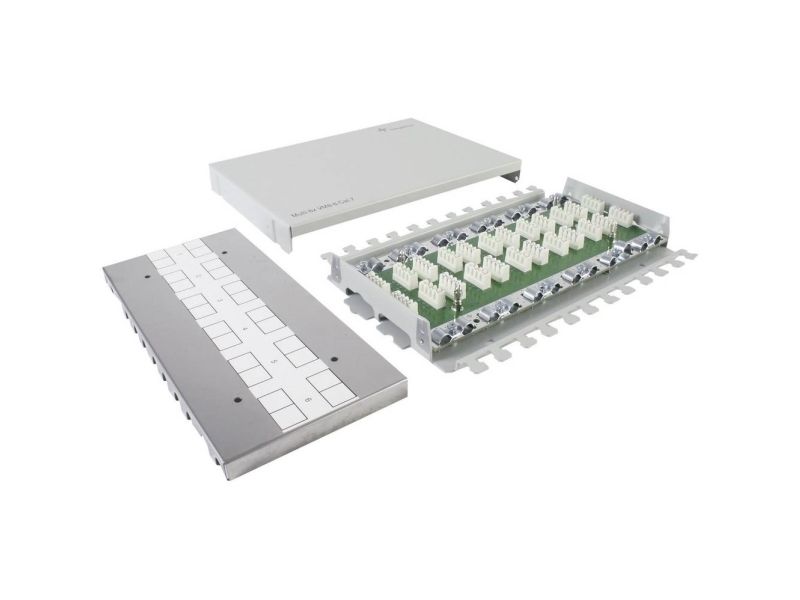

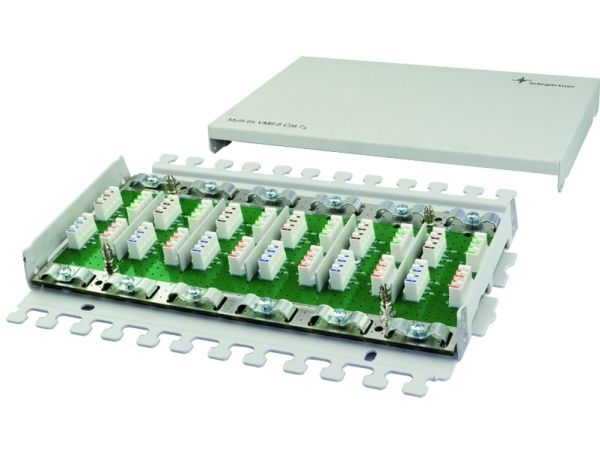

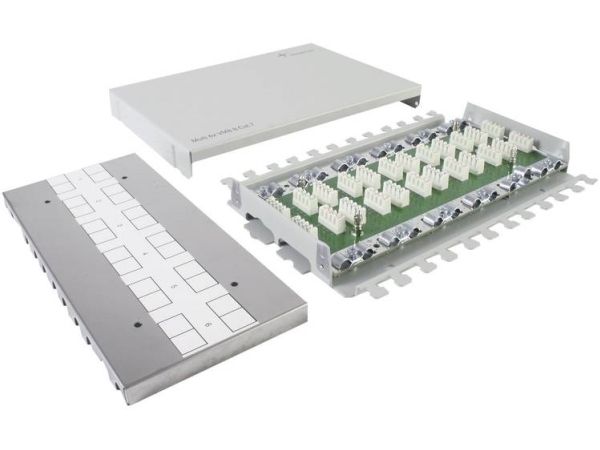

Telegärtner Multi 6x VM 8-8 - Kontaktblokk - veggmonterbar - CAT 7 - lysegrå, RAL 7035
Varenr.: [1919658] | Producent: Telegärtner | Model-nr.: J00060A0071 | EAN: 4018359289447
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Fri frakt Instabox - Velg din nærmeste pakkeboks
Fraktprisen er basert på levering til dette postnummer: - Skift postnummer
Oppgi postnummer for levering.
Se alle alternativer
| Instabox - Velg din nærmeste pakkeboks | Gratis |
| Bring - Hentes på Posten | Gratis |
| PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden | 159,00 |
| Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer) | 224,00 |
NOK
1.332,00
eksklusiv MVA 1.065,60
Totalt inkl. frakt
1.332,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
The VM 8-8 modules are employed as connections and extensions of commercially available, shielded and unshielded twisted-pair installation cables (Cat.5e/ Cat.6/Cat.6A/Cat.7/Cat.7A) in the following applications: transition point/consolidation point, cable extensions, damaged cables, cable rerouting.
When VM 8-8 modules are used, the cable segments in a structured wiring system do not need to be laid out again. This reduces the expenses for alterations and the overall costs to a minimum. Depending on the connection module type, up to 12 incoming and 12 outgoing 8-wire cables can be permanently connected together without any significant reduction in the transmission characteristics or limitation of the maximum link lengths.
Performance Characteristics
- connection via LSA Plus terminals on a common PCB
- colour coding acc. to EIA/TIA 568A and B
- connection of 4-pair shielded/unshielded installation and patch cords from AWG 27-22
- pairs can be brought directly up to the terminal without untwisting the pairs
- secure shielded contact using screw-on terminals directly on the PCB
- variable cable feeds
- cable strain relief using commercially available cable ties (VM 8-8 Cat.7A)
- tool-free installation of shielding cover made of stainless steel (19" and wall mount version)
- surface mount (AP) type: incoming and outgoing cables in the same direction
- surface mount, 19", and basic (for loose connection) version: incoming and outgoing cables offset by 180 degrees
- bonding connection option directly on the PCB (M4 screw)
- EMC compatible in accordance with DIN EN 61000-6-1 and 61000-6-2
- wall housing made of sheet steel,powder-coated, RAL7035 light grey
- a maximum of 6 incoming and 6 outgoing cables
- variable cable infeed from above and below / left and right / from the same direction
When VM 8-8 modules are used, the cable segments in a structured wiring system do not need to be laid out again. This reduces the expenses for alterations and the overall costs to a minimum. Depending on the connection module type, up to 12 incoming and 12 outgoing 8-wire cables can be permanently connected together without any significant reduction in the transmission characteristics or limitation of the maximum link lengths.
Performance Characteristics
- connection via LSA Plus terminals on a common PCB
- colour coding acc. to EIA/TIA 568A and B
- connection of 4-pair shielded/unshielded installation and patch cords from AWG 27-22
- pairs can be brought directly up to the terminal without untwisting the pairs
- secure shielded contact using screw-on terminals directly on the PCB
- variable cable feeds
- cable strain relief using commercially available cable ties (VM 8-8 Cat.7A)
- tool-free installation of shielding cover made of stainless steel (19" and wall mount version)
- surface mount (AP) type: incoming and outgoing cables in the same direction
- surface mount, 19", and basic (for loose connection) version: incoming and outgoing cables offset by 180 degrees
- bonding connection option directly on the PCB (M4 screw)
- EMC compatible in accordance with DIN EN 61000-6-1 and 61000-6-2
- wall housing made of sheet steel,powder-coated, RAL7035 light grey
- a maximum of 6 incoming and 6 outgoing cables
- variable cable infeed from above and below / left and right / from the same direction
