ABUS RM1100, Hvit, 0 - 95%, -10 - 50 °C, 10.5–13.8V DC, 100 x 100 x 46 mm, 160 g

- For connecting to alarm systems
- Detects temperature changes: 3°C within one minute
- Detects maximum temperature: 60°C
- Can be used in humid spaces

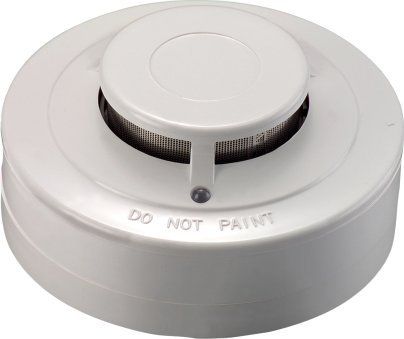

The 12 V raise of heat detector detects incipient fires. It reacts to an excessive maximum temperature and a sudden temperature rise. These indicators are reliably detected and reported to the alarm centre.
The 12 V raise of heat detector is mounted on the ceiling in the centre of the room. The minimum distance to the side wall should be 30cm. Since the 12 V raise of heat detector does not detect smoke (as opposed to optical smoke detectors), it is used mainly in places with high dust and smoke pollution (kitchens, smoke rooms, garages). The detector triggers an alarm when the maximum temperature of 57 degrees is exceeded or when the temperature rises more than 5 degrees with 3 minutes. By changing a jumper, you can configure it as NO or as NC detector. It is therefore suitable for every wired alarm system. The 12 V raise of heat detector is supplied externally with 10-15V operating voltage and is EN54 certified.
