Avision AD380F, 216 x 356 mm, 1200 x 1200 DPI, 48 bit, 24 bit, 16 bit, 8 bit

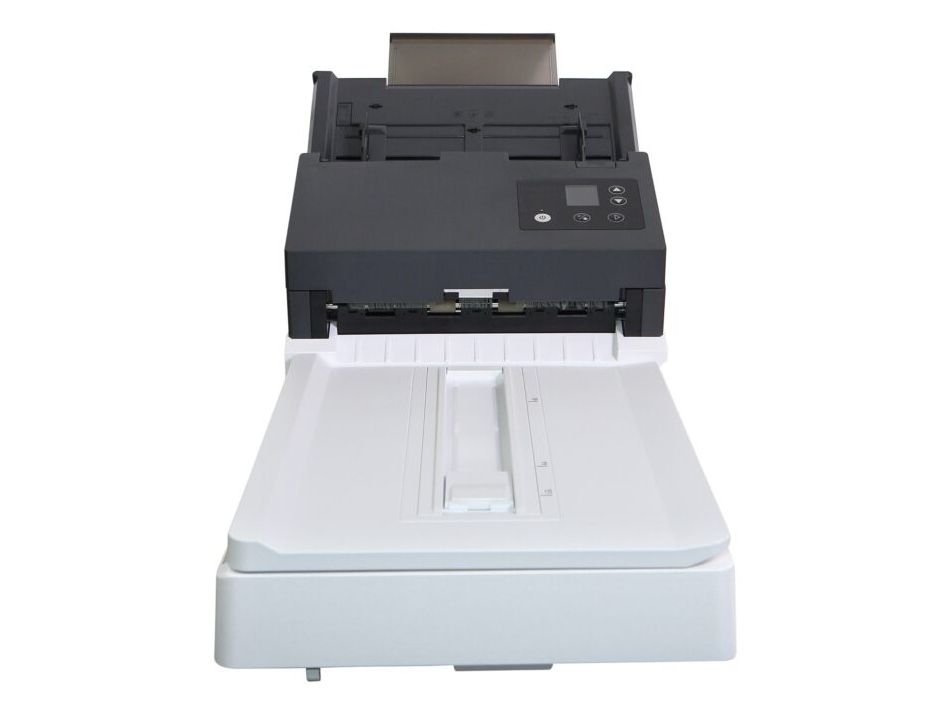

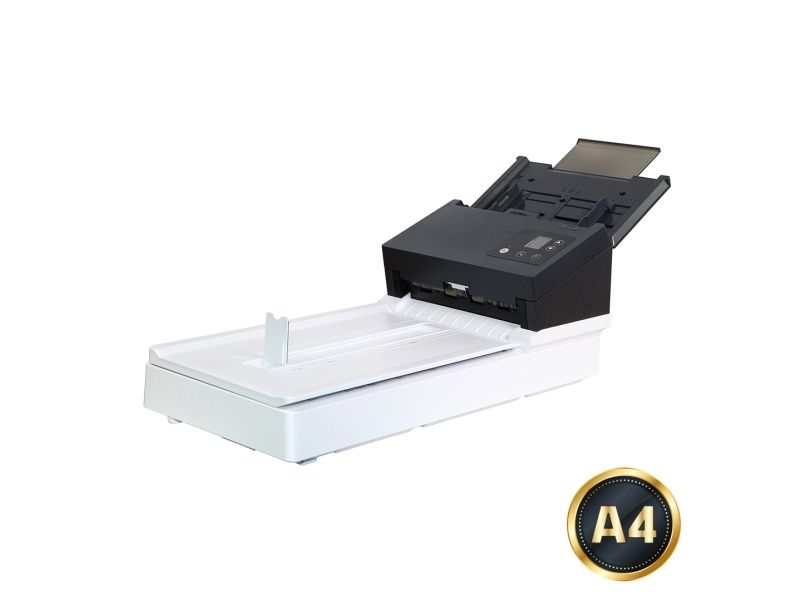

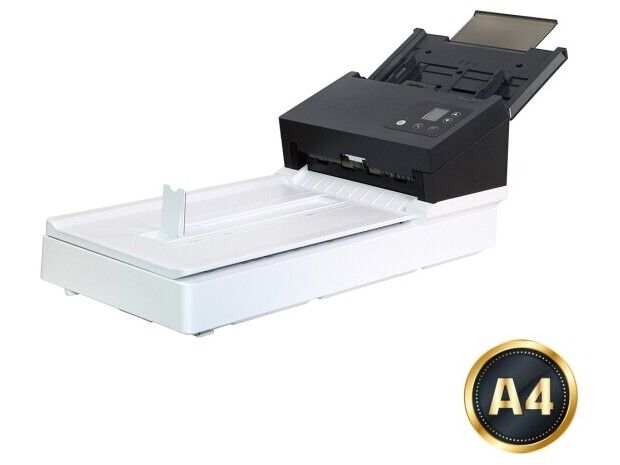

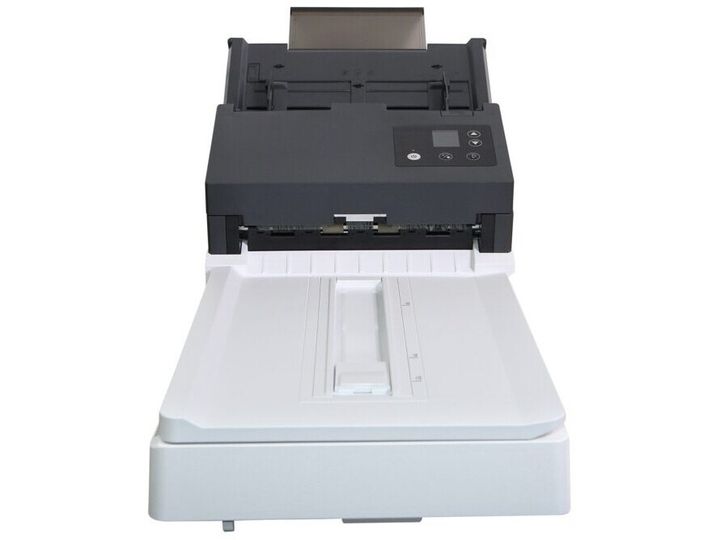

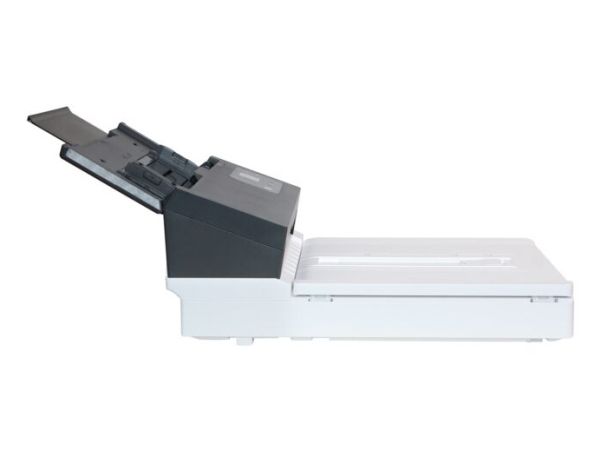

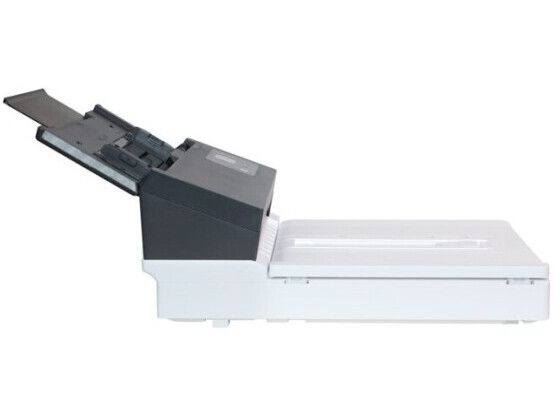

AD380 Professional Document Flatbed Scanner

A New Generation of Document Scanner

Enhanced with innovative features, the Avision AD380 offer high throughput of 80 ppm and 160 ipm in a compact footprint conserving both space and budget. Unlike common sheet-fed scanners which provide only the auto document feeder and can not accommodate irregular sizes and weights of paper, the AD380 harmoniously combines the benefits of the fast scan rate of the ADF and the convenience of the flatbed unit to meet customer’s diverse requirements.

Built-In Advanced Image Processor

Embedded with Avision-developed image processor, the scanned image can be automatically cropped, straightened, and optimized with enhanced speed.

Support form document up to 242 x 356 mm (9.5 x 14 in.)

The AD380 boast unique and innovative design in comparison with its predecessors – the ability to accommodate form document up to 242 x 356 mm (9.5 x 14 in.). The extended document width from standard 216 mm (8.5 in.) to 242 mm (9.5 in.) makes the AD380 more competitive to fit for a wider range of documents.

Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AD380 delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

Paper Protection Technology

The advanced Paper protection technology protects valuable paper from being wrinkled or torn by halting the scan process once a skewed page is detected.

A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts 50 x 50 mm (2 x 2 in.) to business document 242 x 356 mm (9.5 x 14 in.). The auto document feeder is also robust enough to feed paper up to 400 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25 mm thick.

Automatic multiple images cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.

Earth-Friendly LED Technology

The AD380 deliver high throughput and outstanding performance. However, it is earth-friendly at the same time. The LED technology requires no warm up time and is lower power consumption without generating mercury vapor as other traditional scanners using the CCFL (cold cathode fluorescent lamp) technology.

High-Volume Daily Duty Cycle

The scanner can be used to scan up to 15,000 pages per day through the 100-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.

Powerful bundled software applications

The AD380 come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager V2, AVScan X, and ScanSoft PaperPort 11SE. With Button Manager V2, you can scan to searchable PDF, JPEG, BMP, or GIF file format, save to folder on your computer, and scan to e-mail, image editing application, or even a cloud application such as Google Drive, or Microsoft SharePoint with a press of a button. The AVScan X and ScanSoft PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.
