Black Box KVXHP-100, Sender og Mottaker, Koblet med ledninger (ikke trådløs), 4000 m, Cat5e, Cat6, 4096 x 2160 piksler, 60 Hz
Varenr.: [10322180] | Producent: Black box | Model-nr.: KVXHP-100 | EAN: 0822088151791
Ikke på lager
Varen er ikke på lager.
Utsolgt
Varen er ikke på lager.
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres til pakkeboks nær deg
Gratis frakt
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
29.174,00
eksklusiv MVA 23.339,20
Totalt inkl. frakt
29.174,00
Gi meg beskjed når varen er på lager igjen.
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail

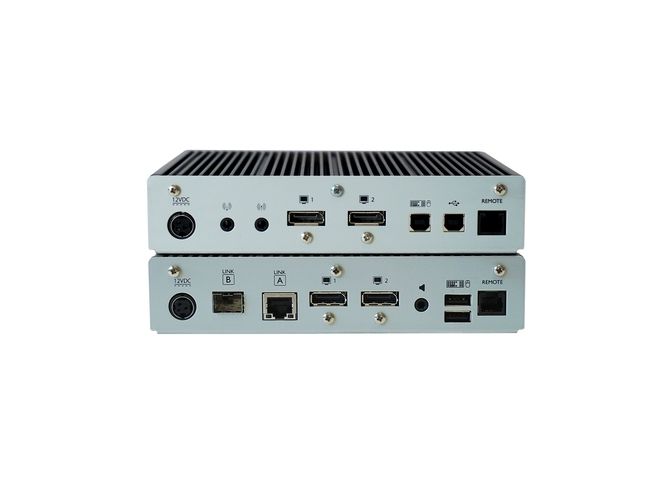

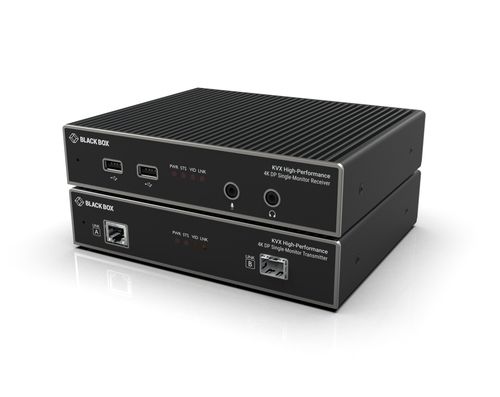

The KVXHP-100 is a high-performance KVMA (keyboard, video, mouse, audio) extender. Ultra-high-definition (UHD) 4K60 video, USB 2.0, audio, and serial data are transmitted on a single CATx or fiber cable. Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug-and-play and high-performance 4K KVM extension.
In a point-to-point configuration, this single-monitor KVM Extender enables you to locally use a DisplayPort monitor, USB keyboard/mouse/other devices, speaker and microphone to operate a remote computer, server, or other IT device.
High-resolution video in real-time
Using DisplayPort 1.2 KVXHP-100 supports single monitor setups with up to 4096x2160 @ 60Hz using 8 bits per color, 4:4:4 Chroma sampling. With its intelligent EDID management the true monitor characteristics are passed back to the computer ensuring the optimum image quality supported by the display-
Emulated USB 2.0
Connects to full- and low-speed USB 2.0/HID devices, including keyboards, mice, graphics tablets, and joysticks.
Flexible choice of media
Whether your requirements to connect the transmitter and receiver unit are CATx or fiber networking cables, KVXHP is equipped to handle both interfaces providing a single solution for all use cases. KVXHP support an extension range of 100m using copper cables, if you select the fiber connectivity, order two SFPs separately depending on your fiber mode and distance needs. A maximum of 4 kilometers is supported over fiber.
Digital and analog Audio
KVXHP supports directional audio ( 24-bit sampled at 96kHz) connect your microphone and speakers/Headset. For digital video, the extender encapsulates up to eight channels of 24-bit, 192kHz sampled “Pulse-code modulation” (PCM) uncompressed audio integrated with the video signal or up to wo channels of 24-bit, 96kHz sampled PCM audio integrated with USB.
Serial Communication
Use KVXP also with serial RS232-devices such as terminals and scanners. RS232 is supported with a maximum baud rate of 115 Kbps with RTS/CTS flow control.
19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVX-HP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack, use our Central Power Hub solution (ACR1000-CPH8R-R2/ ACR1000-CPH16R-R2) for a clutter-free, space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies.
Dual-head models for two monitor connections or quad-head models with support for four DisplayPort monitors are also available.
In a point-to-point configuration, this single-monitor KVM Extender enables you to locally use a DisplayPort monitor, USB keyboard/mouse/other devices, speaker and microphone to operate a remote computer, server, or other IT device.
High-resolution video in real-time
Using DisplayPort 1.2 KVXHP-100 supports single monitor setups with up to 4096x2160 @ 60Hz using 8 bits per color, 4:4:4 Chroma sampling. With its intelligent EDID management the true monitor characteristics are passed back to the computer ensuring the optimum image quality supported by the display-
Emulated USB 2.0
Connects to full- and low-speed USB 2.0/HID devices, including keyboards, mice, graphics tablets, and joysticks.
Flexible choice of media
Whether your requirements to connect the transmitter and receiver unit are CATx or fiber networking cables, KVXHP is equipped to handle both interfaces providing a single solution for all use cases. KVXHP support an extension range of 100m using copper cables, if you select the fiber connectivity, order two SFPs separately depending on your fiber mode and distance needs. A maximum of 4 kilometers is supported over fiber.
Digital and analog Audio
KVXHP supports directional audio ( 24-bit sampled at 96kHz) connect your microphone and speakers/Headset. For digital video, the extender encapsulates up to eight channels of 24-bit, 192kHz sampled “Pulse-code modulation” (PCM) uncompressed audio integrated with the video signal or up to wo channels of 24-bit, 96kHz sampled PCM audio integrated with USB.
Serial Communication
Use KVXP also with serial RS232-devices such as terminals and scanners. RS232 is supported with a maximum baud rate of 115 Kbps with RTS/CTS flow control.
19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVX-HP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack, use our Central Power Hub solution (ACR1000-CPH8R-R2/ ACR1000-CPH16R-R2) for a clutter-free, space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies.
Dual-head models for two monitor connections or quad-head models with support for four DisplayPort monitors are also available.
