Fischer 562351, Rør klemme, Stål, Sort, 20 - 24 mm, 1,27 cm (0.5"), EPDM (pakning), Styren-butadien (SBR), Zink-stål, 0,7 kN

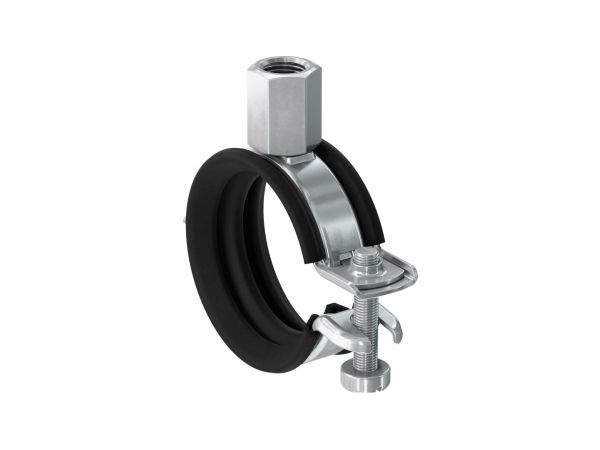

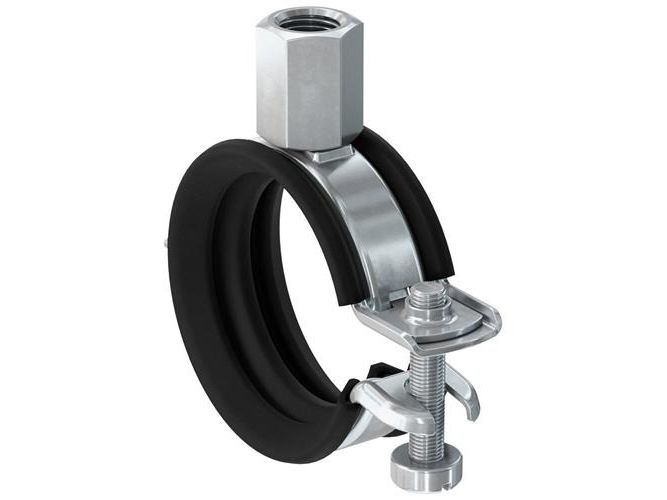

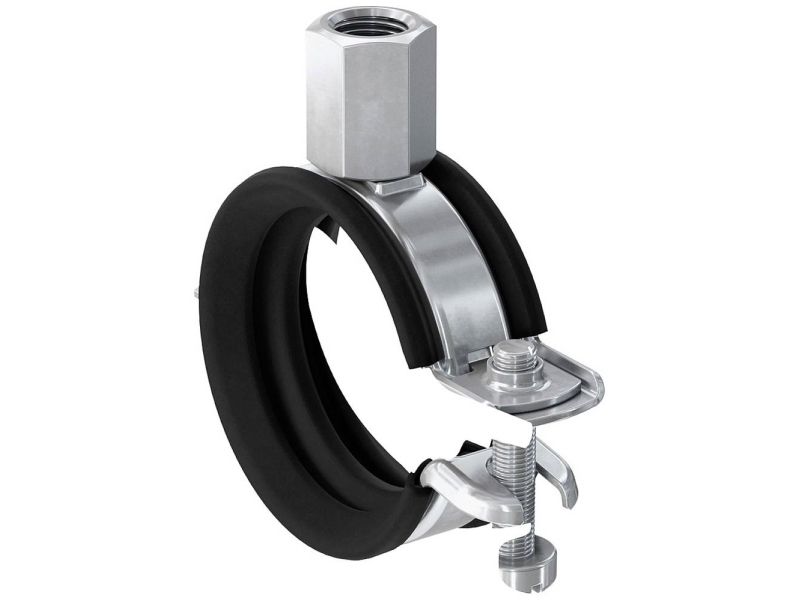

The hinged pipe clamp with the convenient and secure quick-release fastener
Advantages
- The sound insulation test report guarantees objectively tested functional safety.
- The complete and gapless diameter clamping range allows the fastening of any pipe size.
- The unique rapid-locking mechanism with all-round edge enables safe and convenient installation.
- The clamp band with crimped edges gives the sound insulation insert a tight fit and simplifies the pipe adjustment.
- The compact design of the pipe clamp allows simple, subsequent insulation.
- The combination torx-slot thread of the screw increases flexibility during assembly.

The fischer hinged pipe clamp FGRS Universal is a pipe clamp with one screw made from zinc-plated steel in material quality DD11 with a M8 or combination M8 / M10 thread. The rapid-locking mechanism and combination thread ensure easy and time-saving assembly. The quick-release mechanism snaps into place, ensuring reliable adjustment of the pipe without causing the clamp to pop open. This allows pipelines with an outer diameter of 12 - 66 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.

Properties
- Material: steel DC01 (material no. 1.0330) in accordance with DIN EN 10130
- Zinc plating: electro zinc-plated
- Connecting nut: resistance welded, size 13
- Screw plug: panhead screw with slot/Torx combination (M5=TX25, M6=TX30)
- Sound insulating insert material SBR/EPDM; chlorine-free, silicone-free
- Hardness: 55 ± 5° Shore A
- Temperature range: -40 °C to +100 °C
- Fire behavior: DIN 4102: Class B2
