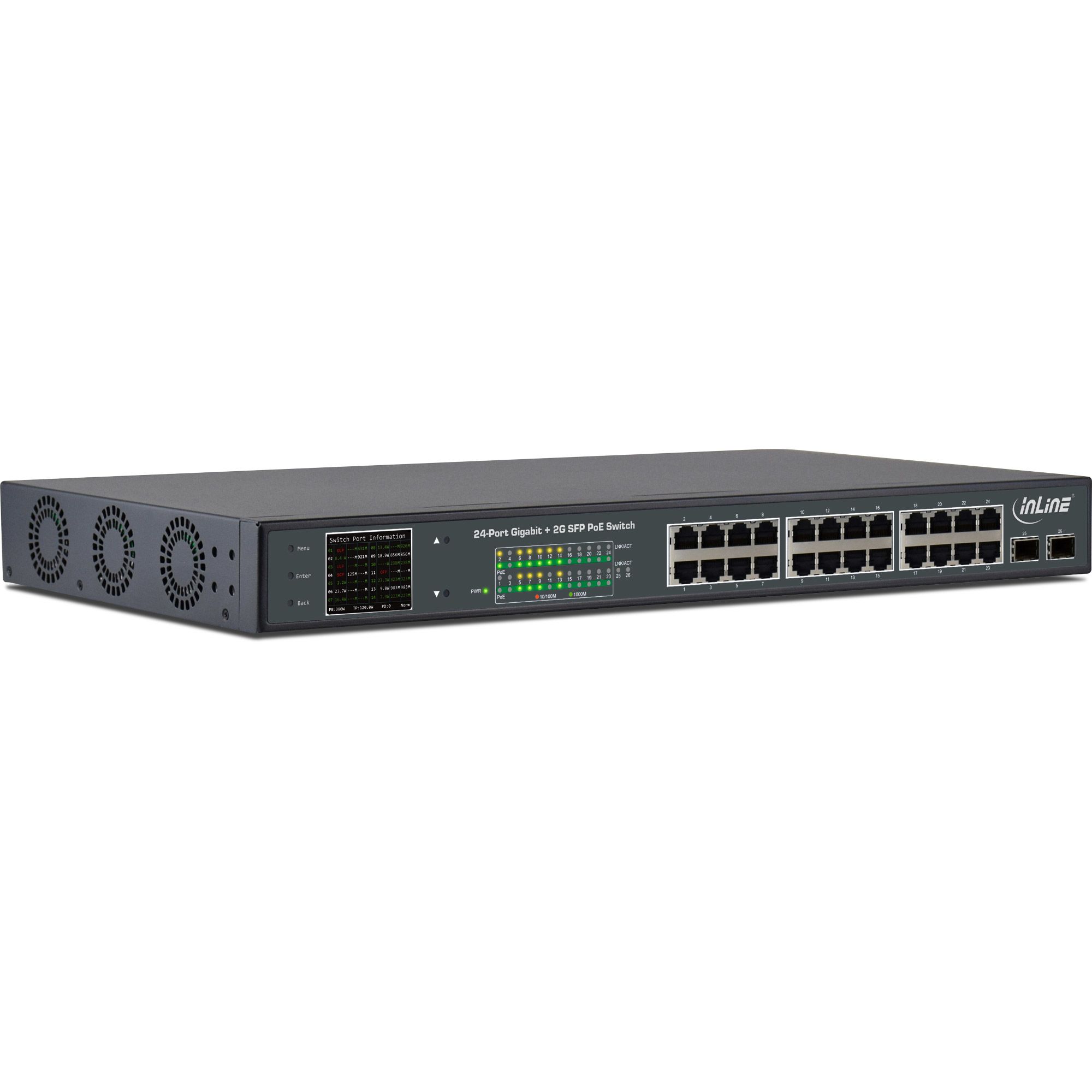

InLine 32324P, Gigabit Ethernet (10/100/1000), Full tosidig, Strøm over Ethernet (PoE), Rack-montering, 1U
Varenr.: [10199561] | Producent: Inline | Model-nr.: 32324P | EAN: 4043718277810
Fjernlager (15-24 hverdager)
Varen er på fjernlager, leveringstiden er 15-24 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
Gratis frakt
Bring – Leveres på hentested nær deg
Gratis frakt
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
6.411,00
eksklusiv MVA 5.128,80
Totalt inkl. frakt
6.411,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
PoE+ switch with 24 ports and LC display for efficient network power supply
Comprehensive PoE power supply:Up to 32 W per port according to IEEE 802.3af/at, PoE budget 380 W for up to 24 end devices.

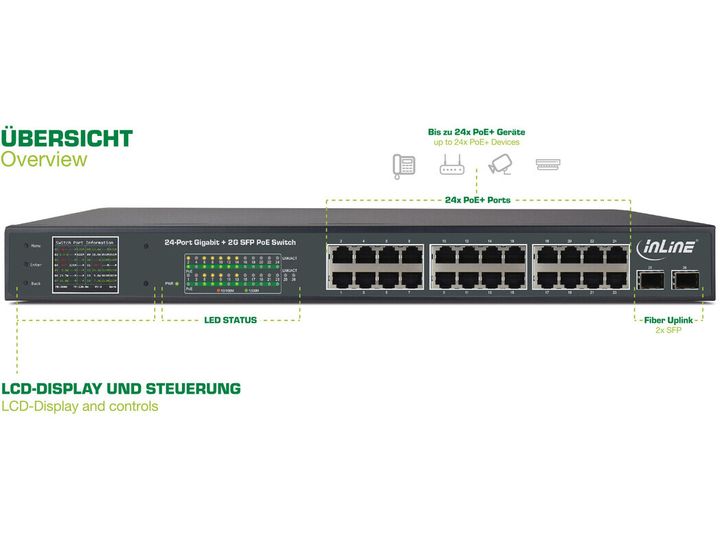

Direct control on the LC display:Per-port status in real time and settings for mode, prioritization and port power.
Gigabit uplinks via fiber:2x SFP reliably connect remote segments.
High packet performance under load:52 G switching capacity, 38.69 Mpps and jumbo frames 9216 bytes.
More safety in operation:Protection against overload, overvoltage and overheating per port, surge protection ± 6 kV.
With this PoE+ Gigabit switch you expand your network with reliable power over Ethernet while creating flexible uplink options. You operate IP cameras, wireless access points and other PDs directly via the network cable and reduce additional cabling and outlet requirements. A PoE budget of 380 W and up to 32 W per port provides reliable power, while two SFP slots enable Gigabit connections over longer distances.
In professional IT environments and on-site installations, the LC display accelerates setup and monitoring. Mounting in a 19 inch rack (1 U, mounting brackets included) fits ideally into existing infrastructures of companies and public institutions as well as in service deployments; selectable modes such as Normal, VLAN and CCTV support port isolation, prioritized power and distances up to 250 m at 10 Mb/s.

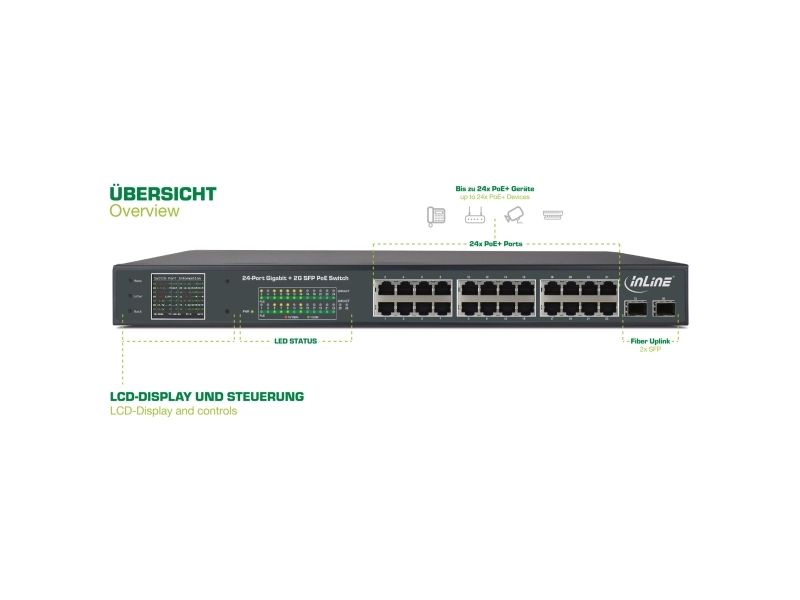

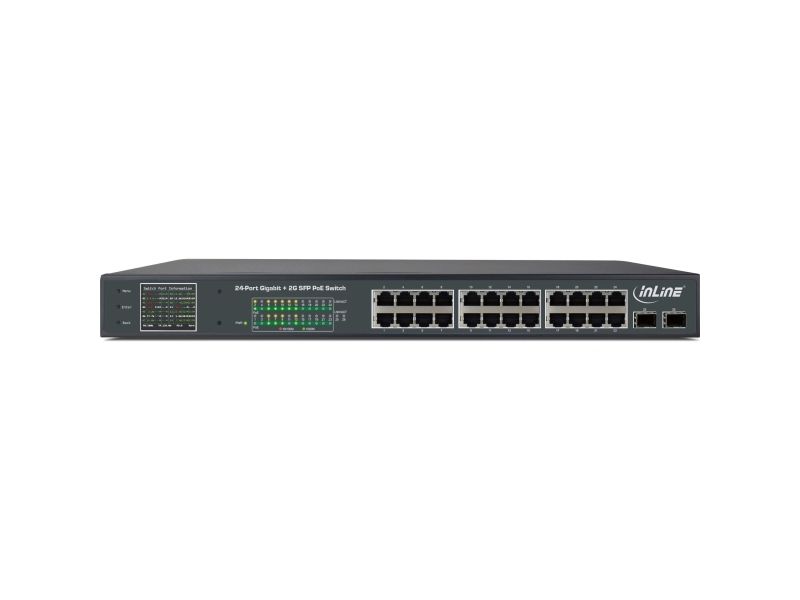

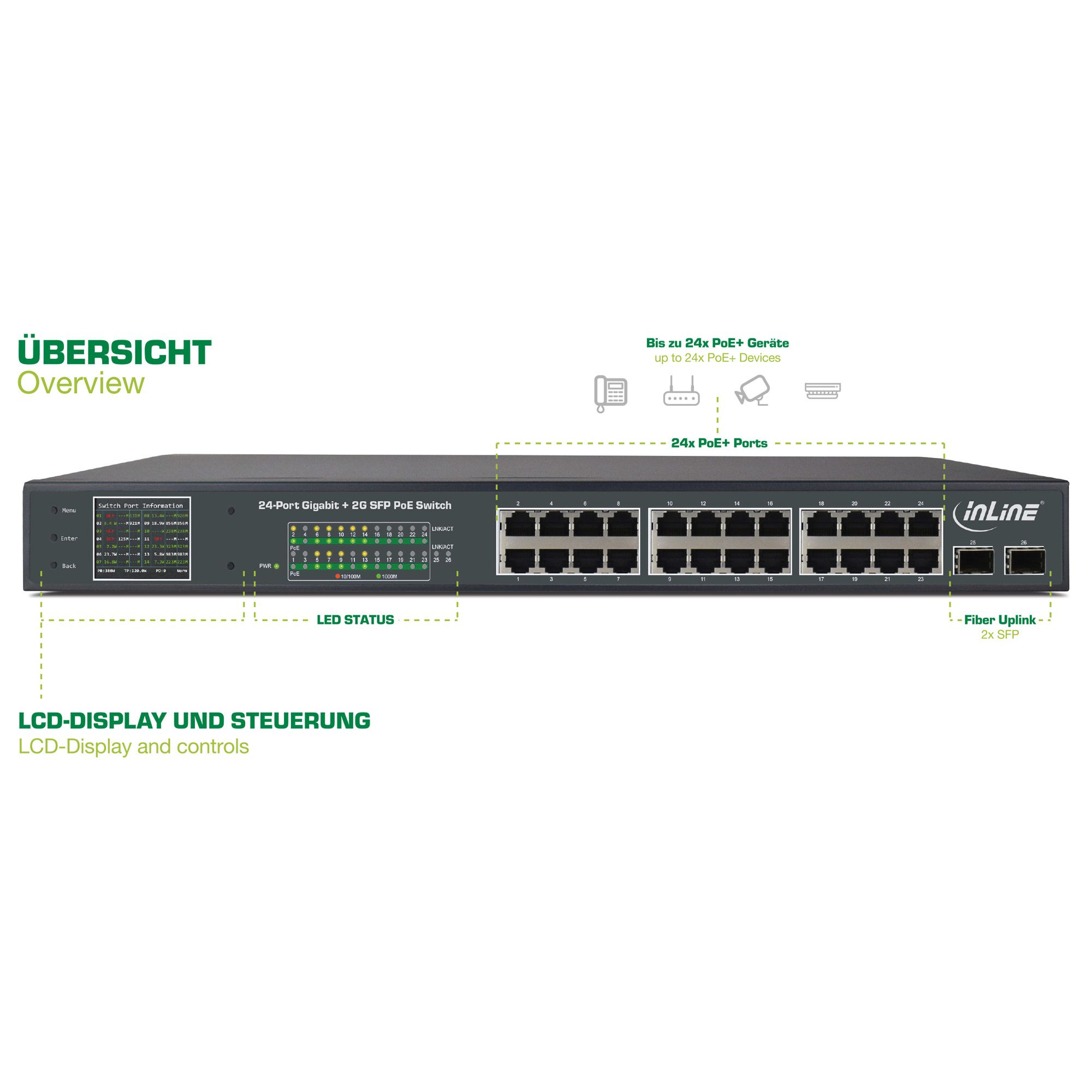

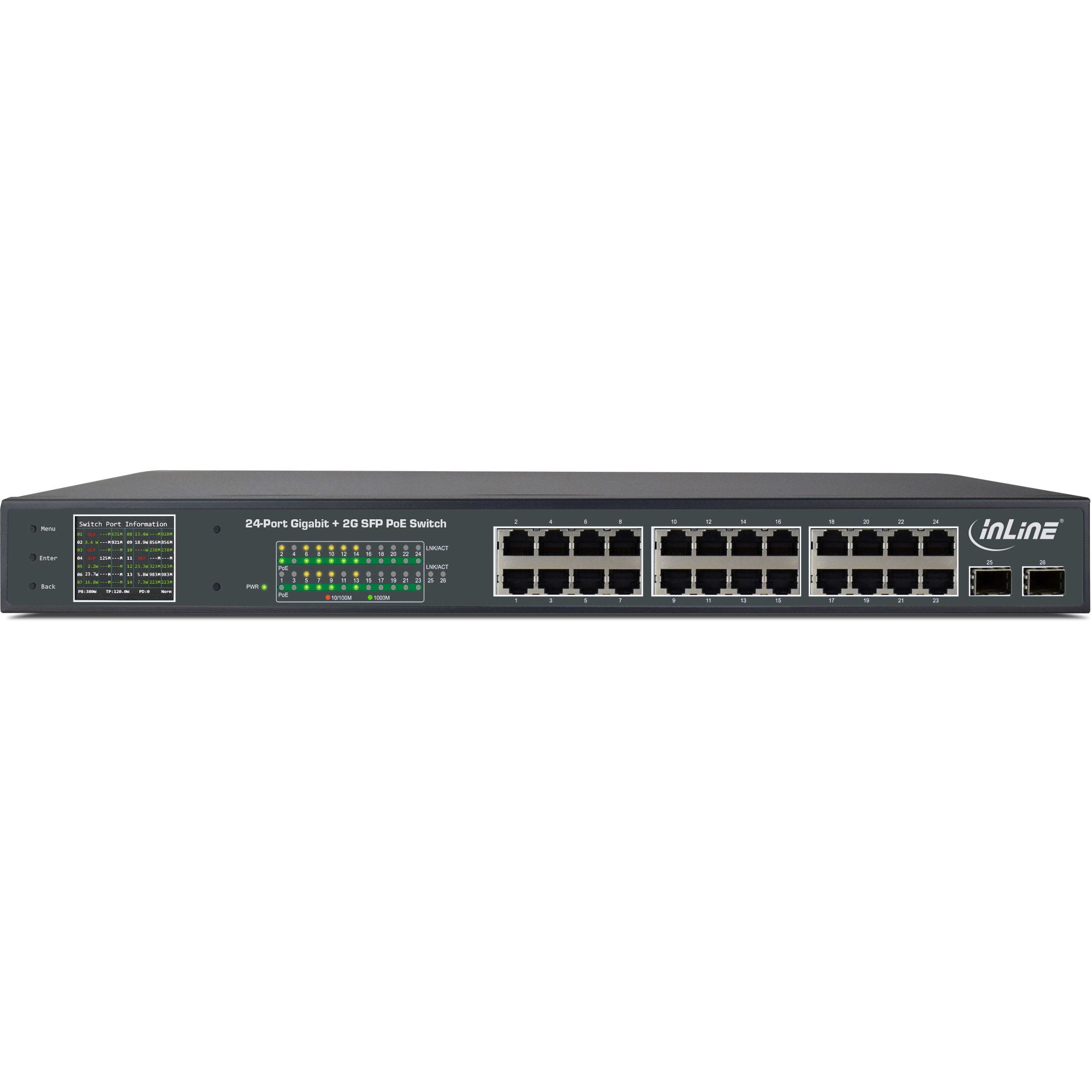

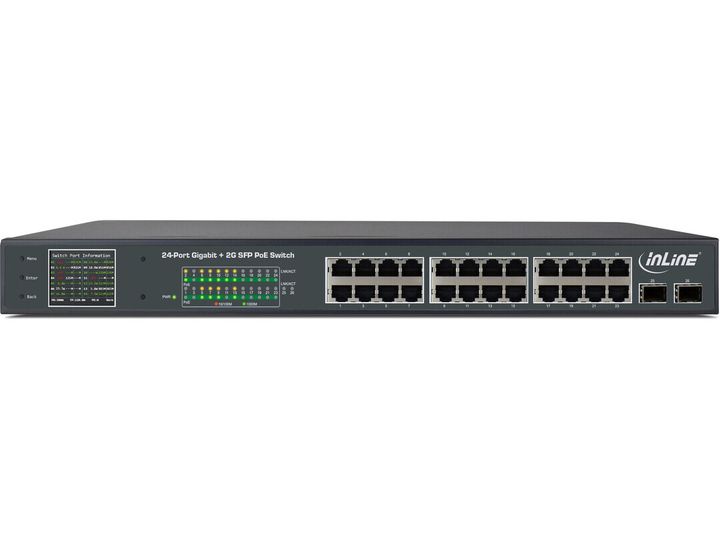

Ports:24x 10/100/1000Base-T RJ45 (Auto-MDI/MDI-X), 2x SFP 1000 Mb/s
PoE:IEEE 802.3af/at, ports 1-24, up to 32 W per port, budget 380 W
Total power:420 W
Display:LC display (PoE operating status), LEDs: PWR, LNK/ACT PoE
Switching capacity:52 G
Forwarding rate:38.69 Mpps
Jumbo frame:9216 bytes
Packet buffer:4.1 Mbit
MAC table:8 K, automatic learning, automatic updates
Forwarding method:store-and-forward
Operating modes:Normal, VLAN (port isolation with uplink communication), CCTV (up to 250 m at 10 Mb/s)
PD features:type selection (Advanced/Standard/Legacy), reboot per port
PSE features:power allocation, port prioritization (high/medium/low), port power 8-32 W in 2 W steps, port on/off
Fan control:always on, 20 % PB, 40 % PB
Standards:IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Network cables:10BASE-T UTP category 3/4/5 (<= 100 m); 100BASE-TX UTP category 5/Cat.5e (<= 100 m); 1000BASE-T UTP category 5/Cat.5e (<= 100 m); 1000BASE-SX MMF/SMF

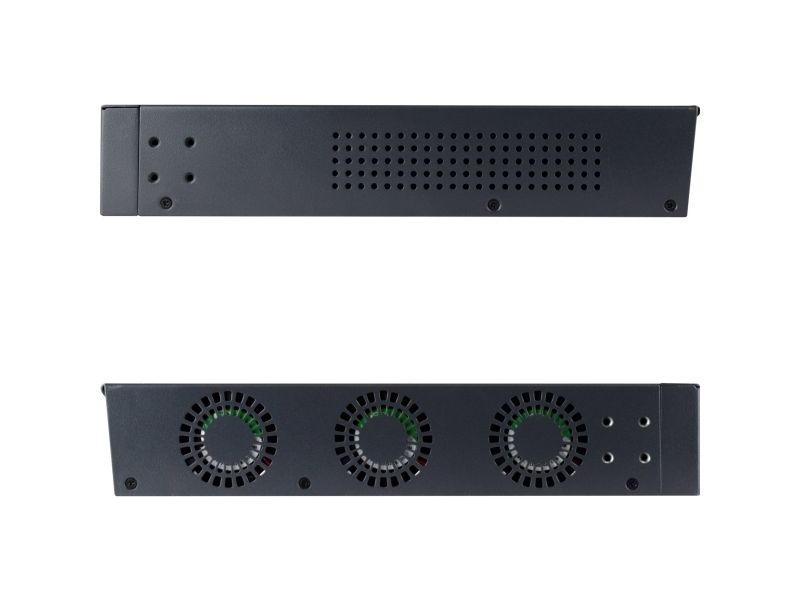

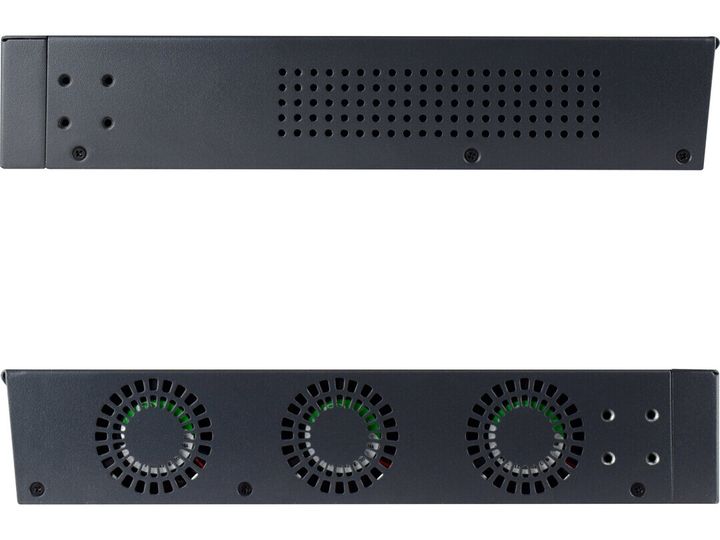

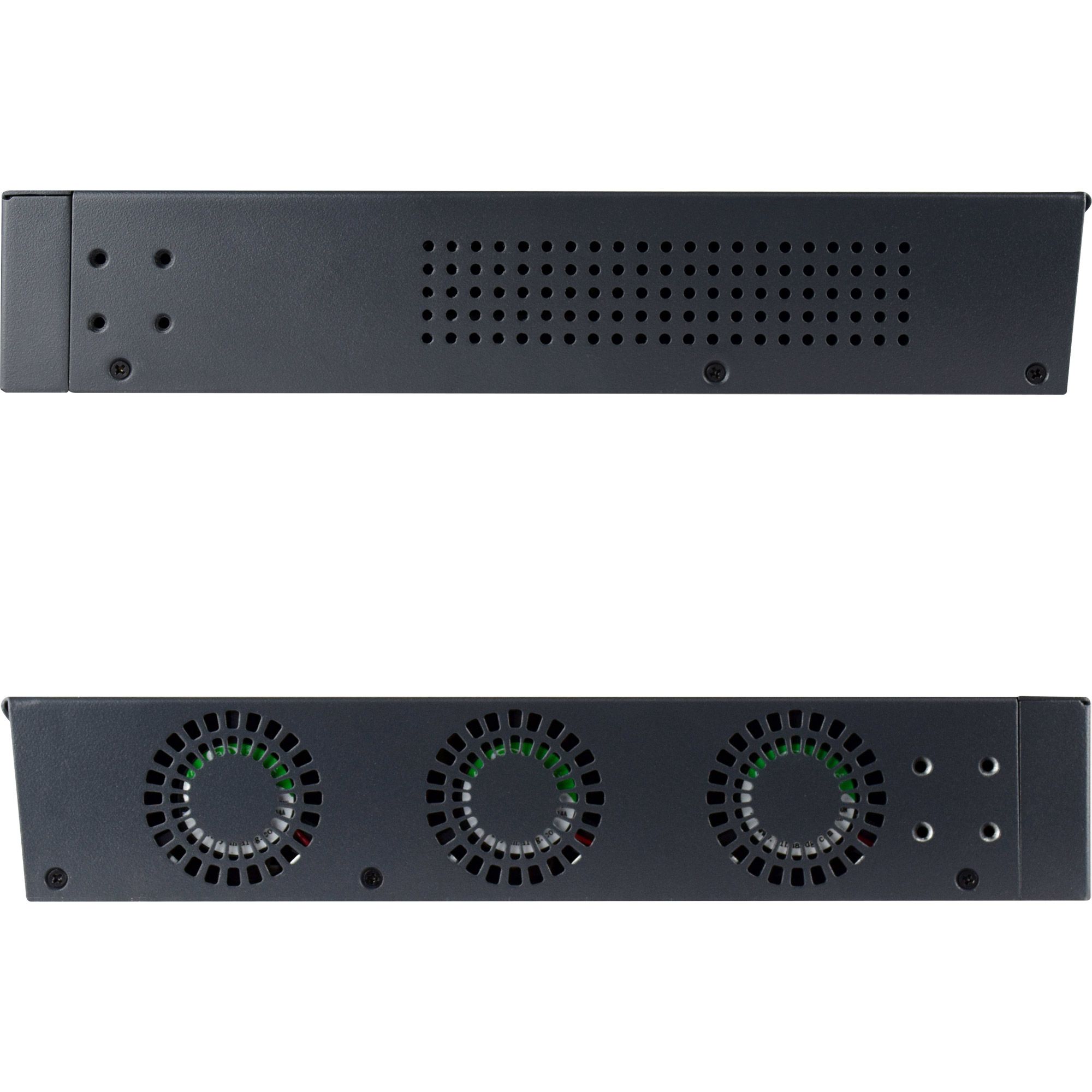

Number of fans:3
Dimensions:440 x 232 x 45 mm
Weight:approx. 3.7 kg

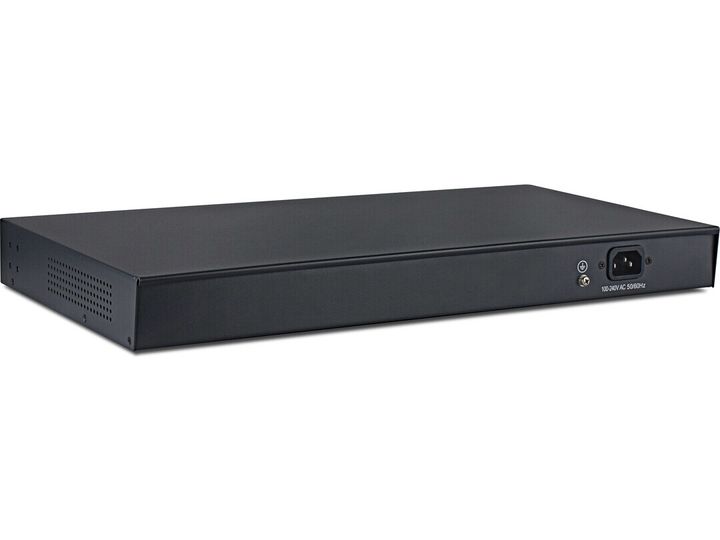

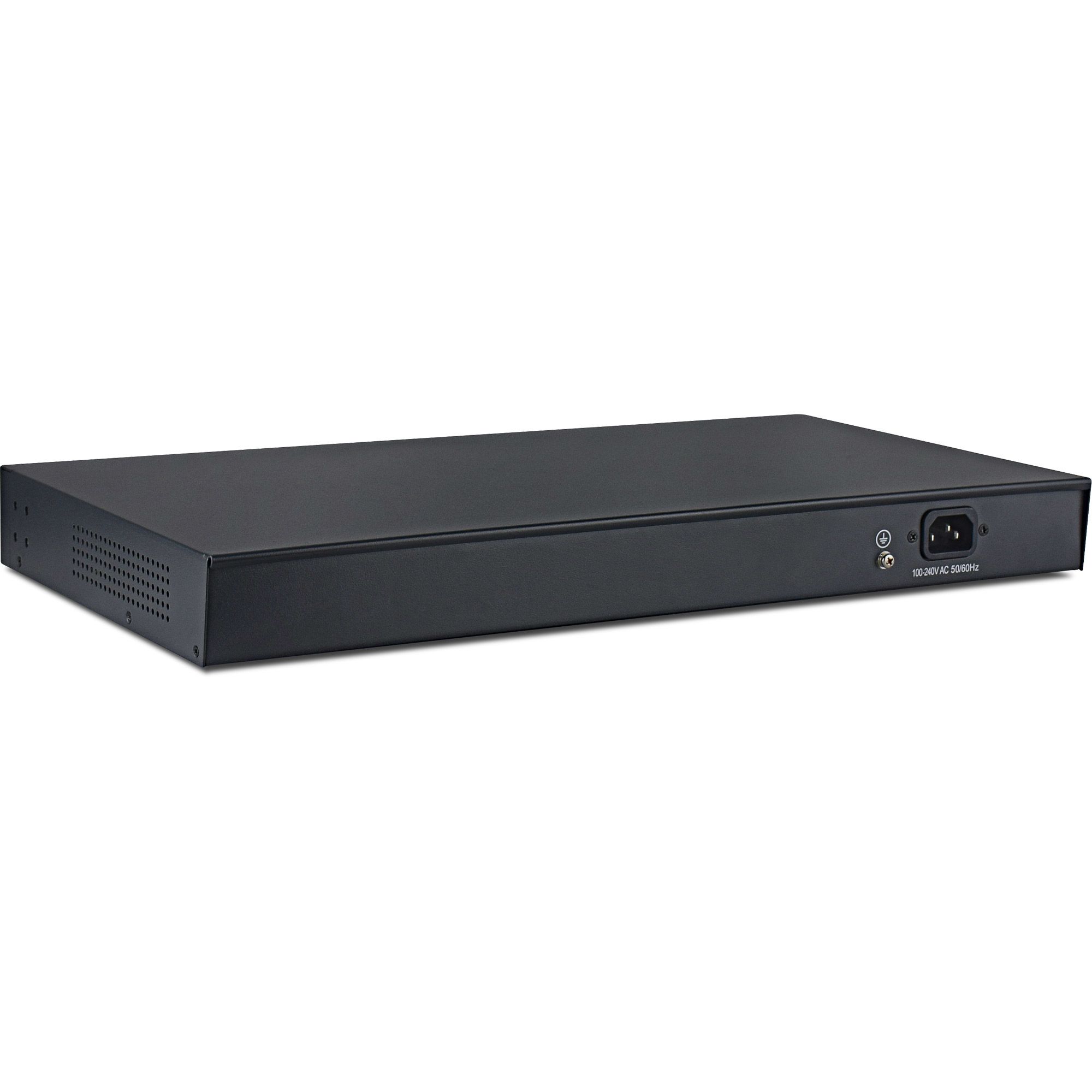

Power supply:100-240 V AC, 50/60 Hz
Environment:operation -10-60 °C; storage -40-70 °C; humidity operation 10-90 % non-condensing; storage 5-90 % non-condensing
Surge protection:± 6 kV
